Características

• Socket AMD AM5: Preparado para procesadores AMD Ryzen™ series 9000, 8000 y 7000
• Conectividad ultrarrápida: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, USB frontal 5Gbps Type-C®, Thunderbolt™ Compatibilidad con 4 conectores
• ASUS OptiMem II: Enrutamiento cuidadoso de pistas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para un mejor overclocking de la memoria
• Refrigeración integral: disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, conectores de ventilador híbridos y Fan Xpert 2+
• Iluminación Aura Sync RGB: Conectores Gen 2 direccionables integrados y conector Aura RGB para tiras LED RGB, que se sincronizan fácilmente con hardware compatible con Aura Sync

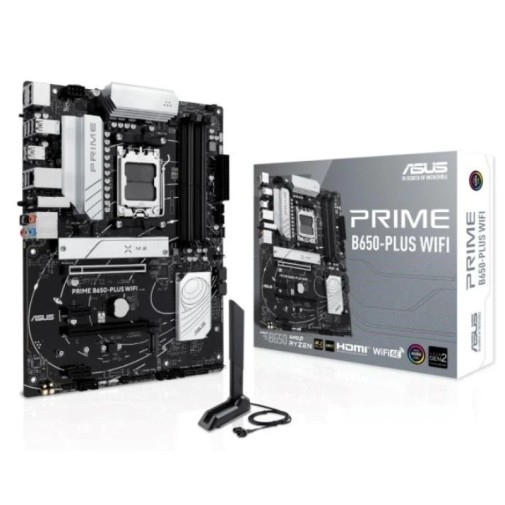

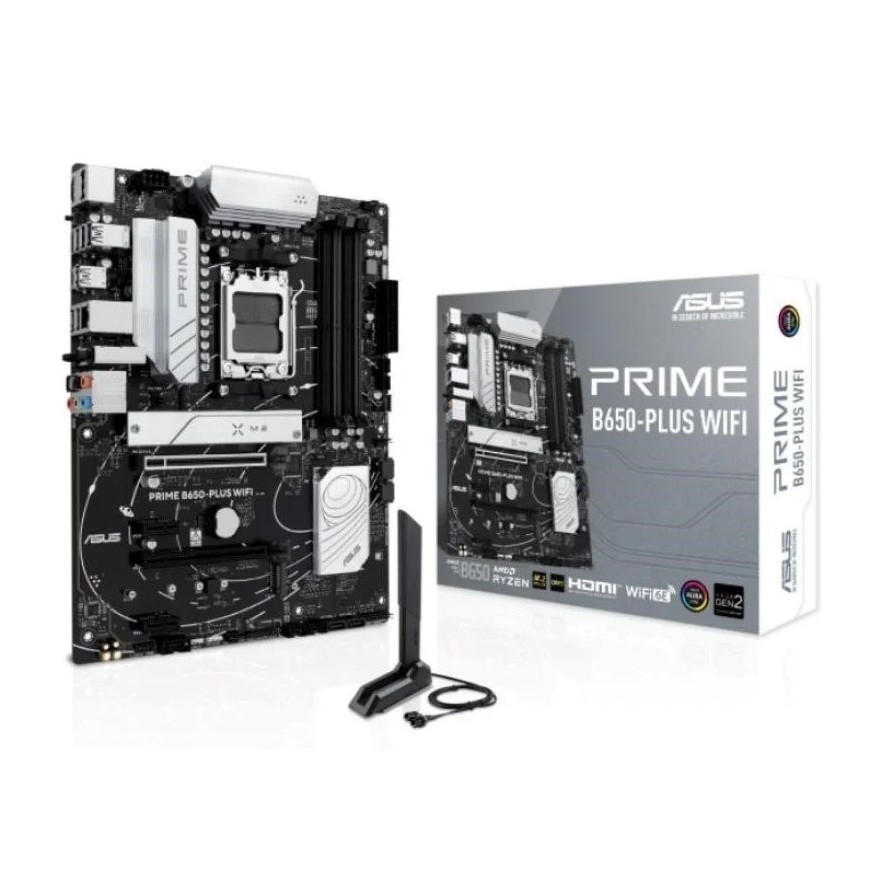

Especificaciones ASUS PRIME B650-PLUS WIFI

• Procesador
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
  • Chipset: AMD B650 Chipset
• Memoria
  • 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
• Gráficos
  • 1 x DisplayPort**
  • 1 x HDMITM port***
  • * Graphics specifications may vary between CPU types.
  • ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansión

  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 2 x PCIe 4.0 x1 slots
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • ** Specifications vary by CPU types.
• Almacenamiento
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
  • ** Specifications vary by CPU types.
• Ethernet

  • 1 x Realtek 2.5Gb Ethernet
• Inalámbrico
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3**
  • * Wi-Fi 6GHz frequency band regulatory may vary between countries.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB

  • Rear USB (Total 8 ports)

    • 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
    • 2 x USB 5Gbps ports (2 x Type-A)
    • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)

    • 1 x USB 5Gbps connector (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Puertos traseros
  • 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
• Conectores internos
  • Fan and Cooling related

    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 3 x 4-pin Chassis Fan headers
  • Power related

    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related

    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB

    • 1 x USB 5Gbps connector (supports USB Type-C® )
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous

    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x SPI TPM header (14-1pin)
    • 1 x 20-3 pin System Panel header with Chassis intrude function
    • 1 x Thunderbolt™ (USB4®) header
• Especiales
  • ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • Safeslot Core+
  • Stainless-Steel Back I/O
  • ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
  • ASUS Thermal Solution
  • Flexible M.2 heatsink
  • VRM heatsink design
  • ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Aura Sync

    • Aura RGB header
    • Addressable Gen 2 headers
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Formato: ATX
